1. INTRODUCTION

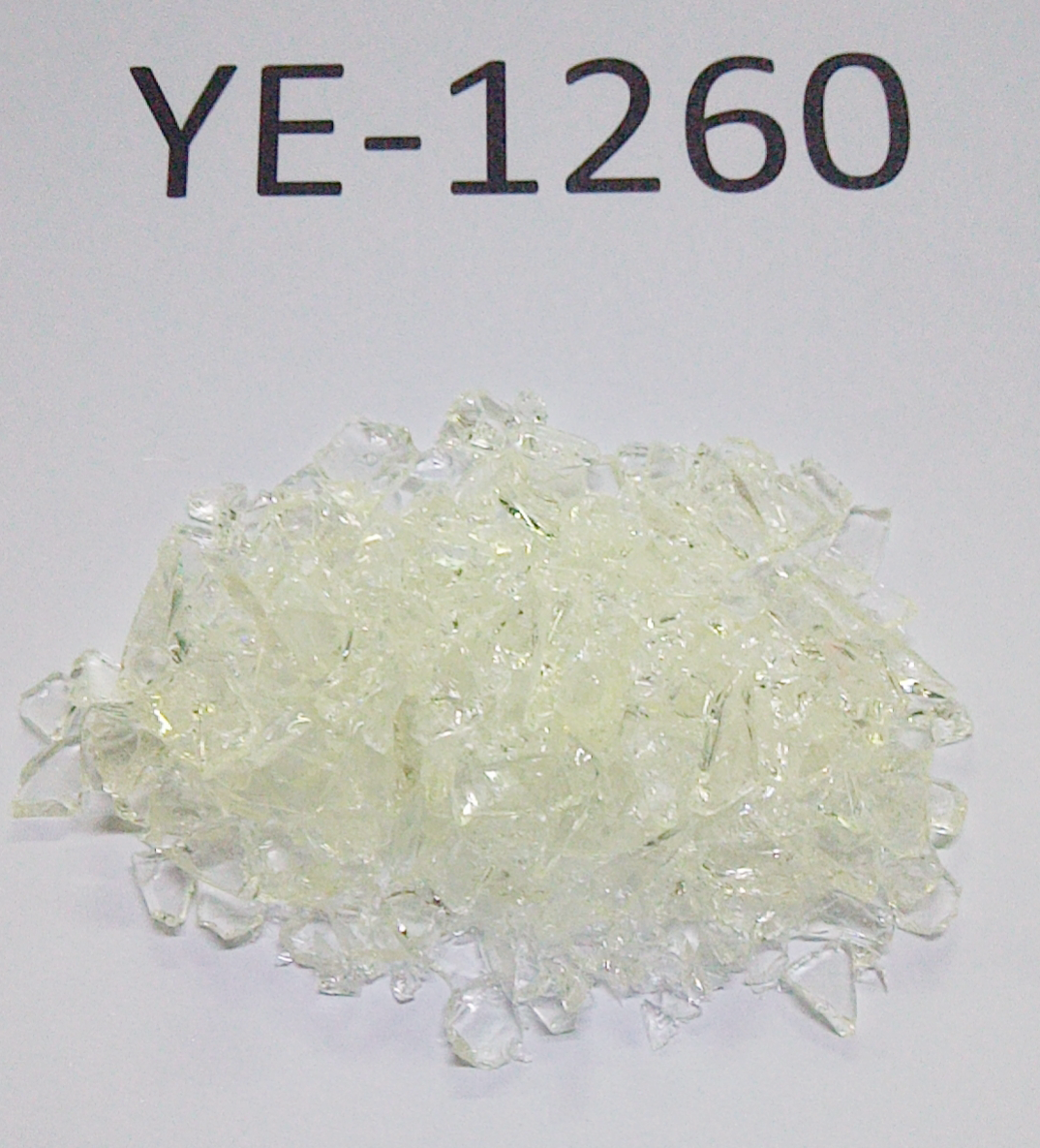

YE-1260 is an exterior saturated carboxylic polyester resin with TGIC at 92/8 forpowder coating, applied to outdoor decorative and functional coating, especially forlow temperature curing coating.
2. CHARACTERISTICS OF THE RESIN
Appearance…………………………pale granules
Acid Value (mg KOH/g)……………39-44 (1)
Color………………………………max.2 (2)
Viscosity at 165℃ (mPa…S)……9000-15000 (3)
Glass Transition Temperature (Tg)…approx. 58ºC(4)
Softening Point (℃)………………105-115 (5)
(1)GB/T 6743-2008；(2)GB/T 1722-92
(3)GB/T 9751.1-2008；(4)GB/T 19466.2-2004；（5）GB/T 12007.6-1989
3. TYPICAL POWDER FORMULA:
Titanium Dioxide……………………………… 300 (1)
Polyester YE-1260…………………………… 644
TGIC……………………………………………56 (2)
Flow Control Agent………………………………10 (3)
Benzoin………………………………… 5
(1) Dupont R-902
(2) ARALDITE PT-810, WPE: 107 (Supplier: Ciba-Geigy)
Other TGIC suppliers are also suitable. YE-1260 / TGIC = 92/8
(3)YL-1080 (Silica Absorption 65%)
4. MANUFACTURING PROCEDURE AND TESTING
（1） MANUFACTURING
a. Pre-mixing (dry-blend of the component above)
b. Homogeneous extrude at temperature of (105-110℃)
c. Cool down and initial grinding
d. Milling and sieve to obtain a fine free-flowing powder maximum particle size of80um
（2）COATING CONDITION:
Voltage………………………… 60-80 kv
Air Pressure………………………………1-2kg/cm2
Test Panel……………………………0.35mm steel panel
（3） CURING CONDITION:
20 minute at 130℃ or 15 minute at 120℃ (infrared curing)
（4） TEST RESULT:
Film Thickness…………………………………60-80um
Gloss…………………………………. >80% (1)
Erichsen Slow Penetration ………… 4mm (2)
Direct / Reverse Impact…..……………50kg-cm (3)
Conical Mandrel…………………………Pass (4)
Crosshatch adhesion……………………GT=0 (5)
(1)GB/T 9754-1988 (2)GB/T 9753-1988
(3)GB/T 1732-1993 (4)GB/T 6742-1986
(5)GB/T 9286-1998
5. PACKING AND STORAGE
25 kilogram paper bag or PE bag; stored in a cool dry indoor place at temperature of-20℃ to 35℃. Avoid long-term exposure to direct sunlight. The shelf life of the resin isone year in the above-mentioned storage conditions. Experience has shown that storagelife of the resin is up to 3 years. It is proposed that the testing product beyond the shelf lifecan still be used after tested qualified.
Note: The above-mentioned indications are based on carefully made tests. Noliability can be assumed in the event of any inaccuracy or incompleteness being found inthe value listed above and consequently we recommend evaluation in your ownlaboratories prior to use.
Guang Dong Yin Yang Environment -Friendly New Materials Co .,Ltd . is a national high-tech enterprise integrating R&D, manufacturing and marketing, an environment-friendly high-tech enterprise for water-based emulsion polymers and polyester resin for powder coatings.
